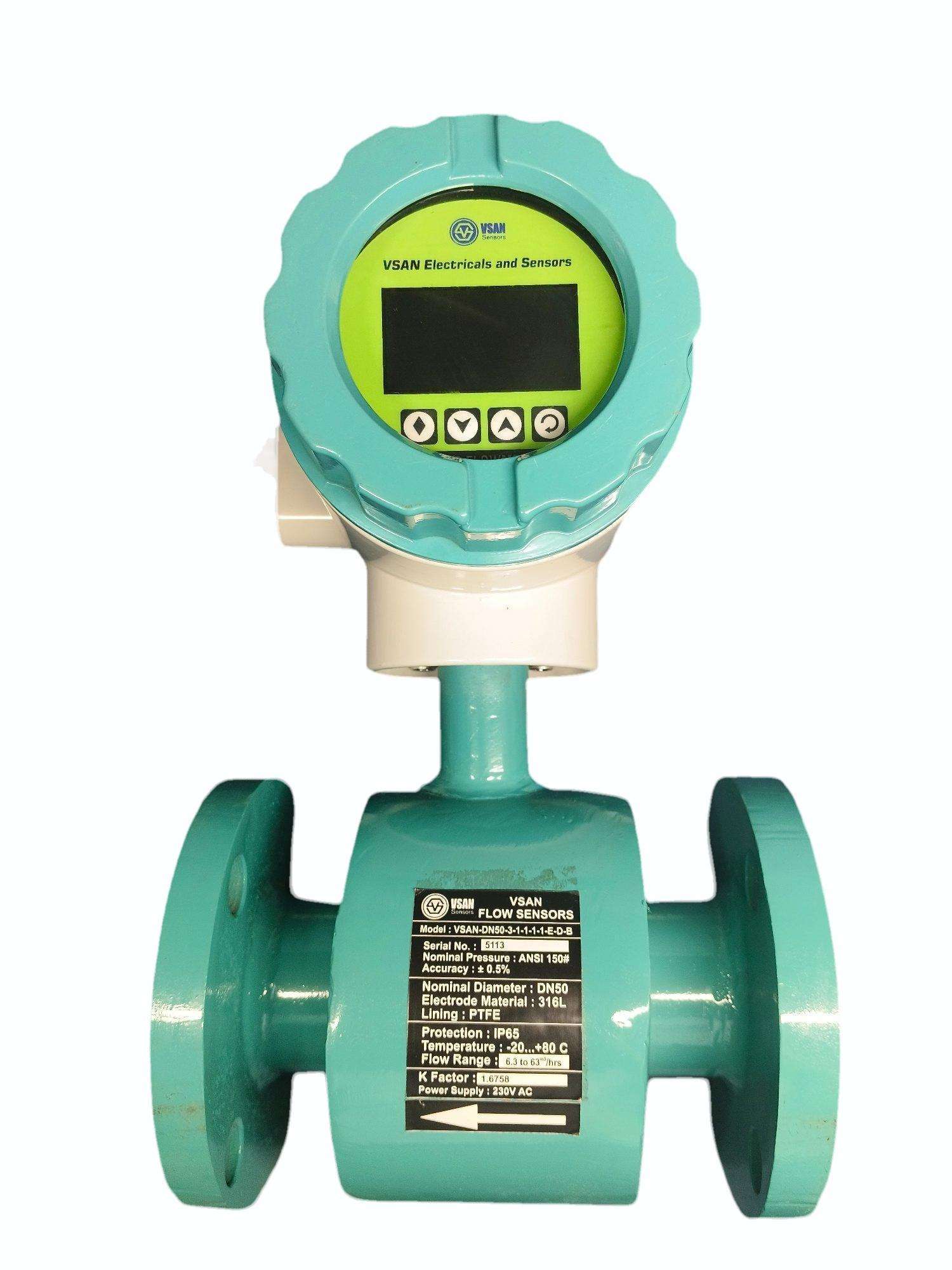

Electromagnetic flow meters operate based on Faraday’s Law of Electromagnetic Induction, which states that when a conductive fluid moves through a magnetic field, a voltage is generated.
Magnetic Coils: Coils placed outside the pipe generate a magnetic field perpendicular to the direction of the fluid flow.
Conductive Fluid: The liquid flowing through the pipe acts as an electrical conductor.
Electrodes: Two electrodes positioned inside the pipe wall detect the induced voltage, which is directly proportional to the fluid’s velocity.
Transmitter: An electronic transmitter unit processes this voltage signal, filters out noise, and converts it into a quantifiable flow measurement (volumetric flow rate).
Key Features and Benefits
No Moving Parts: The absence of internal mechanical components means no wear and tear, even with abrasive slurries, resulting in low maintenance requirements and long operational life.
Minimal Pressure Loss: Since the flow path is unobstructed, there is virtually no pressure drop across the meter.
Unaffected by Fluid Properties: The measurement is largely independent of the liquid’s density, viscosity, temperature, and pressure, provided its conductivity is above a minimum threshold.
Bi-directional Measurement: Many models can measure flow in both forward and reverse directions.
High Accuracy: They offer exceptional accuracy, often around ±0.5% of the reading or better, which is crucial for applications demanding precision.
Applications
Electromagnetic flow meters are versatile and suitable for a broad range of conductive liquid applications.
Water and Wastewater Treatment: Used extensively for monitoring raw water intake, sewage, and treated water distribution.
Chemical and Pharmaceutical Industries: Ideal for handling aggressive or corrosive chemicals due to customizable, corrosion-resistant liner and electrode materials (e.g., PTFE, Hastelloy).
Food and Beverage Industry: The hygienic, non-intrusive design is suitable for measuring food-grade liquids like milk, juices, and syrups, ensuring product quality and compliance with hygiene standards.
Mining and Slurries: The durable, obstruction-less design works well with abrasive materials and heavy slurries.
