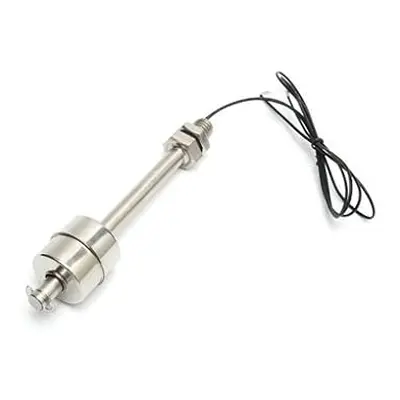

Single-Level Sensing Float Switch – Specifications

🔹 Housing Material: SS 304, SS 316
🔹 Float Material:

           PP (Polypropylene) – Up to 70°C         SS 316 (Stainless Steel) – Up to 125°C
🔹 Mounting: M10 Male Thread with Nut
🔹 Maximum Temperature: 125°C
🔹 Maximum Pressure: 10 kg/cm²
🔹 Maximum Switching Voltage: 230V AC
🔹 Maximum Switching Current: 0.7A

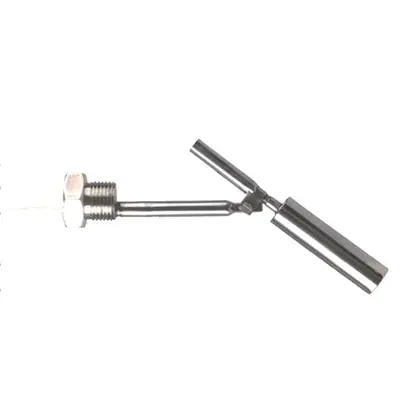

Miniature Horizontal Float Switch – Specifications

🔹 Switch Type: Reed Switch
🔹 Switching Voltage: 240V AC max
🔹 Switching Current: 0.7A max
🔹 Contact Form: SPST (Single Pole Single Throw)
🔹 Mounting Type: NO (Normally Open) or NC (Normally Closed) (depends on mounting)
🔹 Max. Temperature: 125°C
🔹 Max. Pressure: 3 Kg/cm²
🔹 Mounting: Float Wetted Parts

Miniature Level Switch – Specifications

🔹 Construction: Compact, suitable for vertical mounting
🔹 Cable Length: 2 meters
🔹 Probe Length: Up to 1000mm
🔹 Float Material: PP (Polypropylene), SS 316
🔹 Switching Rating: 24V DC / 230V AC
🔹 Number of Switch Levels: 1 to 2
🔹 Mounting Options: Flange, Threaded Length
🔹 Material of Construction: SS 304, SS 316
🔹 Maximum Temperature: 125°C
🔹 Maximum Pressure: 10 kg/cm²
